LPV Coaters

Specialty line of Food and Feed Coaters, Designed to Streamline the Coating Process
Commercial Coater
Atomizer
Display

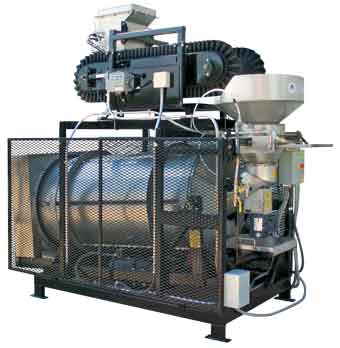

The LPV Coater offers a durable, stainless steel design with a user-friendly programmable logic controller (PLC) control panel, triple load cell weight belt, and patented stainless steel nebulizer chamber. Also includes a variable speed drum in 8-ft. or 10-ft. lengths with actuator for drum tilt. The LPV Coater is the ideal solution for operations processing larger volumes of a wide range of products.

LPV Standard Features
  • Stainless steel design for product contact  surfaces

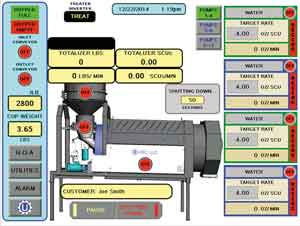

  • 12-in color HMI touch screen fully automated
  • USC triple load cell weight belt
  • Adjustable actuator to feed weight belt
  • Chain driven drum rotation
  • Variable speed drum
  • Actuator for drum tilt for start, run and clean-out
  • 20-in quick release (patented) nebulizer for easy clean-out
  • 8-ft drum
LPV Options
  • 10-ft and 12-ft drum lengths
  • Air-operated by-pass Y valve
  • 13-in or 16-in quick release (patented) atomizer chamber for easy clean-out
  • 30-in quick release (patented) nebulizer chamber for easy clean-out
  • Surge hopper bucket elevator
  • LIW system
  • High and low bin indicators
  • (VMW) Volumetric metering wheel
  • Dry micro ingredient feeders
  • Liquid tanks options (see tank options)
  • Power options 230V 1PH, 230V 3PH, 380V 3PH, 460V 3PH, 575V 3PH
  • Heated drum
  • All stainless steel design including framework and weight belt
