Open Top Field Loader Conveyor - V2.0

open top field loader conveyor
OPEN TOP FIELD LOADER CONVEYOR

USC’s open top field loader conveyor is part of the grain and fertilizer handling product line. Made of stainless steel, the open top field loader conveyor is primarily designed to move fertilizer. Its low-profile perfectly fits under commercial hoppers, and the self-moving feature makes it convenient to use anywhere in the field.

Watch it now:  OPEN TOP FIELD LOADER CONVEYOR VIDEO

FEATURES & ADVANTAGES
  • Self-moving with directional controls.
  • Gas over hydraulic power pack.
  • Moves up to 150 tons per hour.
  • 35’ length.
  • 14’ discharge at 24° incline.
  • 24” wide chevron belt.
  • 12-gallon fuel tank.
  • 1.5” Dodge bearings.
  • 2-5/16” ball hitch.
  • Low profile.

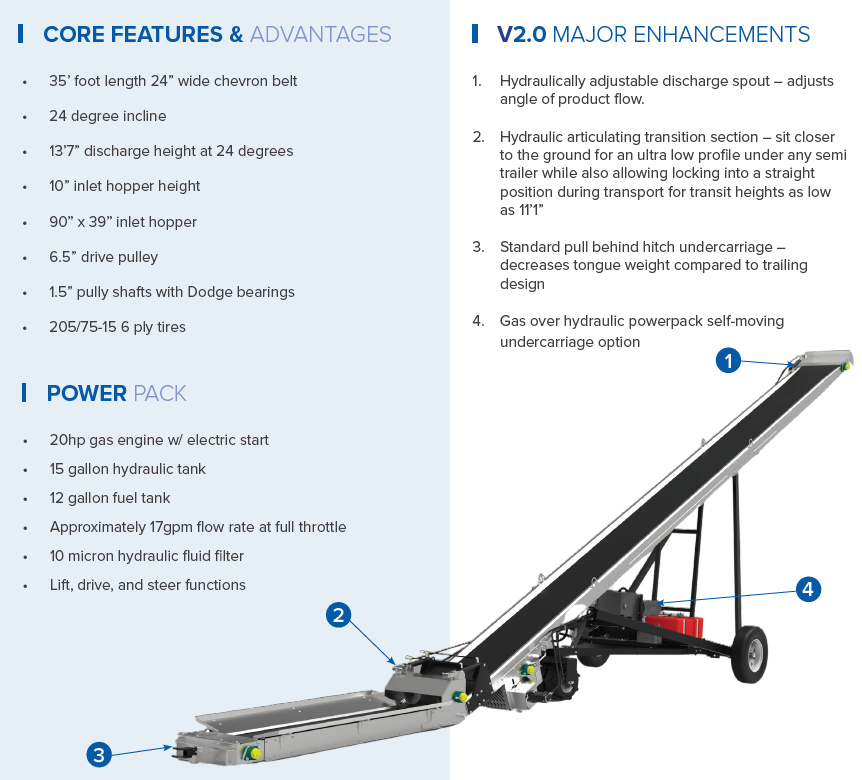

V2.0 MAJOR ENHANCEMENTS
  • Hydraulicly adjustable discharge spout – adjusts angle of product flow.
  • Hydraulic articulating transition section – sit closer to the ground for an ultra low profile under any semi trailerwhile also allowing locking into a straight position during transport for transit heights as low as 11’1”
  • Standard pull behind hitch undercarriage – decreases tongue weight compared to trailing design
  • Gas over hydraulic powerpack self-moving undercarriage option



open top f&B

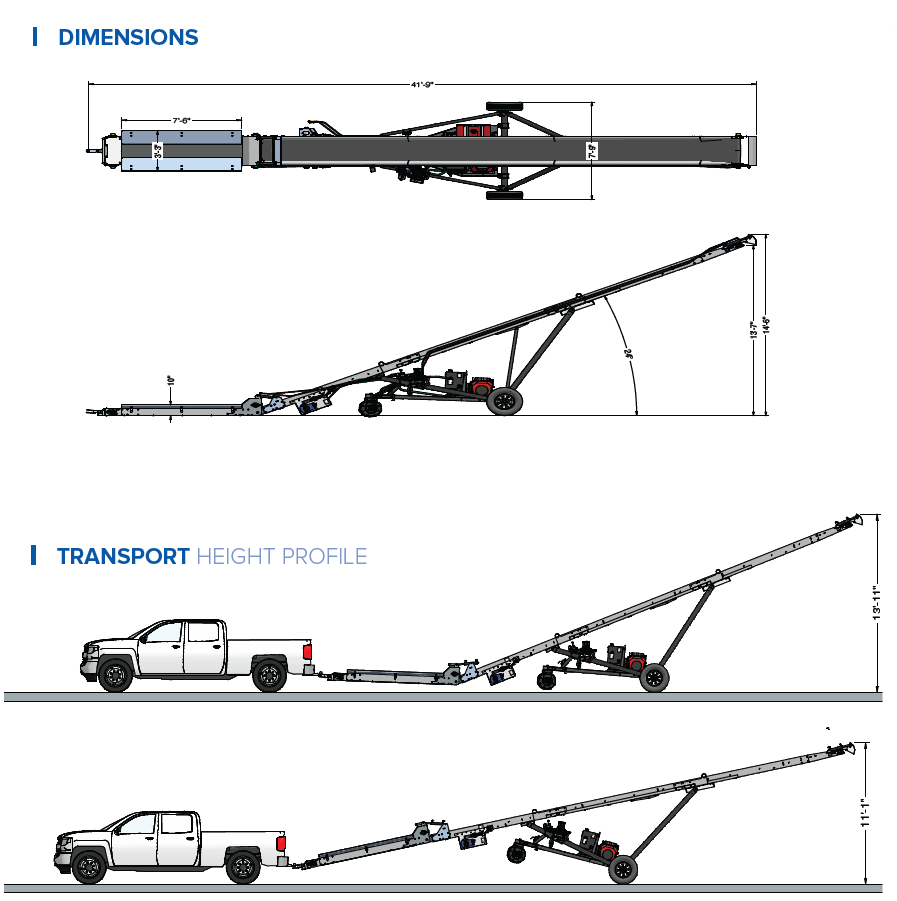

dimensions
