Bulk System Start-Up & Training

Once electrical power has been supplied to the site, a USC Equipment Specialist arrives to conduct official start-up of USC equipment.

Bulk System Start up

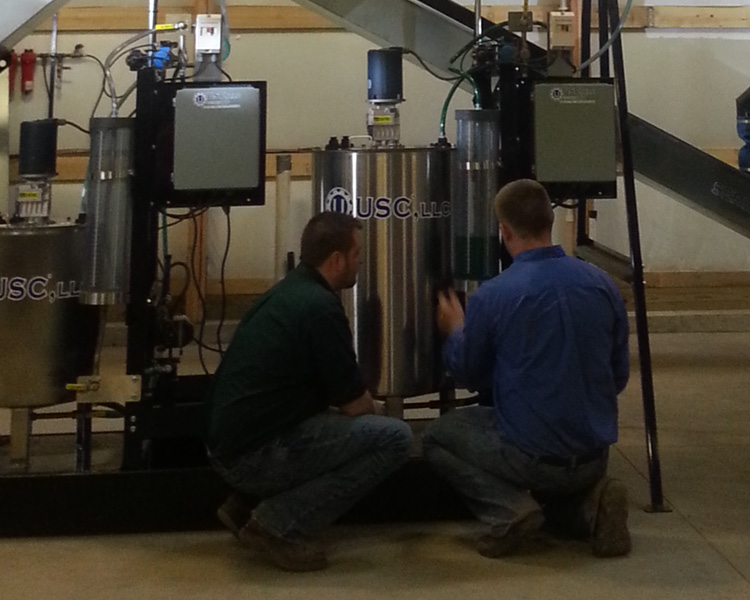

Once electrical power has been supplied to the site, a USC Equipment Specialist arrives to conduct official start-up of USC equipment. Customers are responsible for arranging a qualified scale technician to certify the scales and make legal for trade in the jurisdiction. USC provides a Training Specialist to visit each bulk site before treating seed for the first time. The Training Specialist properly trains each customer on USC’s single point automation, specific details about USC equipment and how to take advantage of all the added features USC products offer.

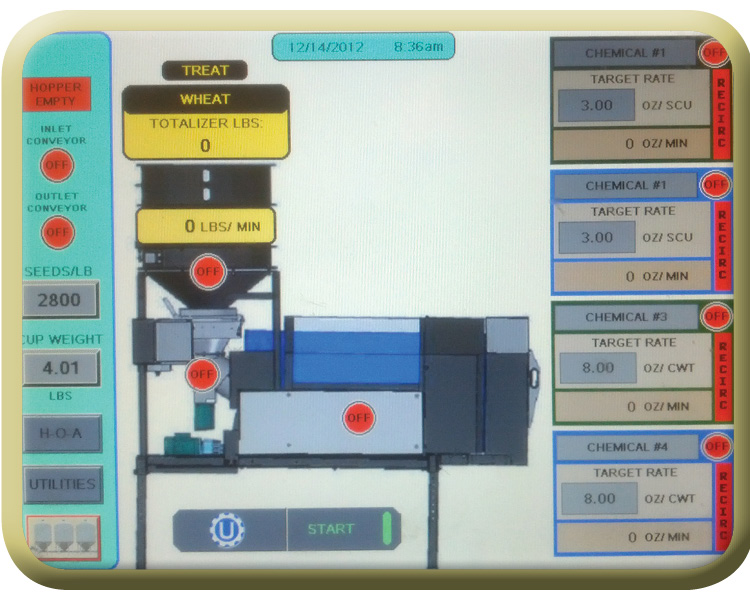

V4 Control Panel

Integrated Single PLC Control Panel

USC single touch screen control panel controls entire bulk system
Each PLC bin site panel configured specifically for each site
Bin inventory and tracking system
Customer reporting ability with receipt printer
Run batch by seed weight (in pounds), seed count or units
Operate in metric or standard units; Auto calibration

Configurations & Options for Bulk Seed Systems:
Weigh Hoppers:
  • Tri-Flo® stacked above treater
  • Tri-Flo® floor mounted with conveyor feeding treater
  • 300-Unit weigh hopper stacked above treater
  • 300-Unit weigh hopper floor mounted with conveyor feeding treater
  • 100-Unit weigh hopper stacked above treater
  • 100-Unit weigh hopper floor mounted with conveyor feeding treater
Box-Dump Hoppers:
  • Floor mounted feeding into scale hopper
  • Outside on under bin head or tail sections
  • Floor mounted inside building feeding out to under bin conveyor
Bin Fill and Truck Unload Conveyors:
  •  Electrically powered bin fill and truck unload
  •  Hydraulic lift on bin fill conveyor
Under Bin Conveyors:
  • Under bin lengths come in 2.5’ sections
  • An under bin reversing option is available for easy clean out
Miscellaneous Options:
  • Treater diverter system
  • Treater pivot stand
  • Swivel wheels for portable conveyors
  • Flexible seed ladder for discharge conveyors
  • Re-bag hoppers
  • Vibrating hoppers
  • Collapsible hoppers on conveyors
