AT500H

Convenient, flexible and innovative, featuring USC’s patented slide-out atomizer with more customized ordering options.

screen

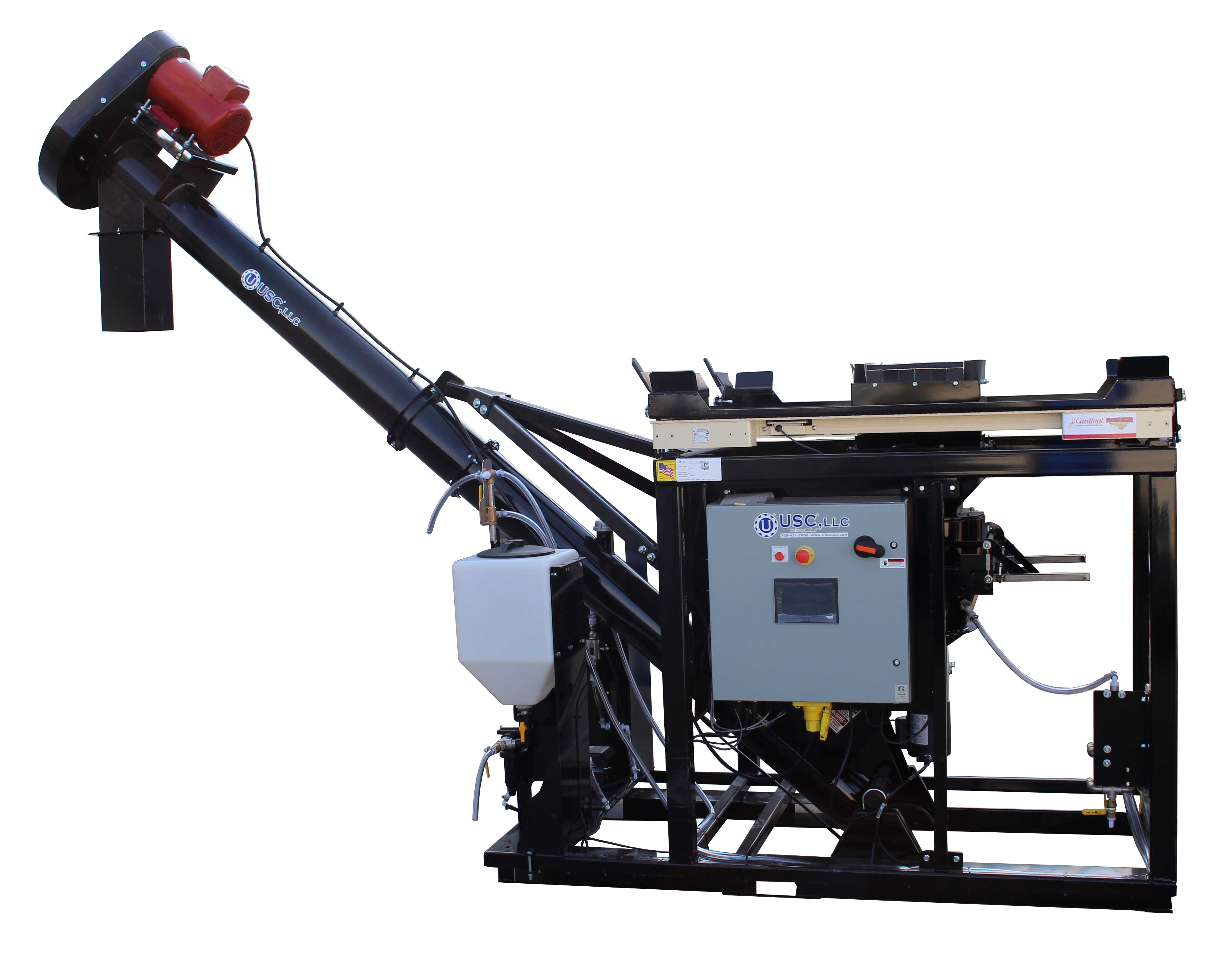

AT500H seed treater
Simple, Compact Design

USC’s patented and proven AT500H treater’s compact design creates the most versatile solution for any-sized seed treatment operation. The AT500H has been available to the downstream market for more than 15 years perfecting treatment application and automation technologies. This treater protects seed with a gentle, poly-flighted auger, accurately treats everything from corn and soybeans to cereal grains, and brings simplicity to the treating process with intuitive and trusted automation functionalities.

Features
  • Continuous Flow Seed Treatment
  • Treats Up To 800 Bushels / Hour
  • 12' Long Poly Flighted Auger
  • 8" Poly Cupped Flighting
  • Slide Out Atomizer For Quick Cleanup
  • 4 Port Static Mixer
  • 2" NPT Port For Dry Additive Input
  • 230V 1Ph, Electrical Panel Includes All Motor Controls
  • Loss In Weight or Multi-Position Manual Adjustable Chamber Metering Options
Accessories & Options

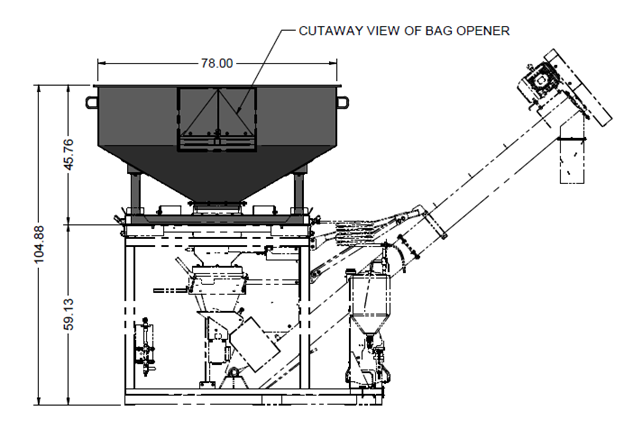

  • Inlet Hopper with Bag Cutter
  • Manual Treater For Box
  • Automated Treater With Box-to-Box Loss In Weight
  • Dry Additive Feeder
  • 7" Automated Touch Screen or Manual Controls
  • Dual 10 Gallon Tanks and Dual Flow Meters
  • Dual 15 Gallon Tanks with Agitation and Dual Flow Meters
